Oil Seal Vacuum Pumps – Application

Our Oil Seal Vacuum pumps are widely used in different areas of vacuum engineering. It is useful in generating a rough as well as medium vacuum. It is also used as backing pumps in combination with high vacuum pump or roots vacuum pumps. It is very suitable for research applications and industrial production.

Our Oil Seal Vacuum Pumps are efficiently used in various applications such as

  •    Laboratory Application Of Chemical Plant
  •    Distillation
  •    Vacuum Drying
  •    Gas Charging
  •    R&D Center Vacuum Impregnation, Packing
  •    Forming Coating
  •    Relevant Recovery
  •    Re-refining of oil
  •    Dehydration
  •    Filtration Processes
  •    Thin Film Coating
  •    Vacuum Metallurgy
  •    Vacuum Sublimation

Oil Seal Vacuum Pumps – Salient Features

After years of experience and ongoing research, stringent quality control and watch on manufacturing process, our technocrats endeavor to manufacture products helps customers to enhance efficacy of their process.

Our oil seal vacuum pump comprises several useful features such as

  •    Robust Construction
  •    Compact, well-designed and low weight model
  •    Maximum Efficiency
  •    Trouble-free operation
  •    R&Easy and fast arrangement to change oil
  •    Thoroughly tested for seamless operation
  •    Easily handle dust laded gases
  •    Built-in anti suck facility to prevent back of oil

Field Application

  •    Laboratory Application of chemical Plant.
  •    R & D Centre Vacuum Impregnaton, Packing
  •    Vacuum Drying, Forming Coating
  •    Lamp Industries, Leak Detection,
  •    Cryogenics, Distillation.Re-refining of oil

Capacity

  •    Max. Capacity : 50 LPM to 20,000 Lpm (3.06 M3/hr.to 1204M3/hr.)
  •    Max. Vacuum : Single Stage : 0.05 mm of Hg.
  •    Max. Vacuum : Two Stage : 0.005 mm of Hg.
  •    Recommend Motor : 0.25 HP to 25 HP, 1450 RPM Pump Speed : 500RPM

Oil Seal Vacuum Pump with Robust Construction and Utmost Efficiency from the Quality Vacuum Products Manufacturing Company in India

Finetech Vacuum Pumps is a pioneering manufacturing company of Oil Seal Vacuum Pumps in India. Our high quality vacuum products are efficiently and effectively used by several industries for their different applications. Renowned as a one of the leading manufacturers and suppliers of Vacuum products based in Ahmedabad, Gujarat, we ensure our customers to supply the products with the highest standards and longer service life.

Fine Tech’s Oil Seal Vacuum Pumps – Superior Quality, International Standard, and Competitive Price

We manufacture products using the best quality raw materials after thoroughly inspected by our quality supervisors. Moreover, all parts are also machined, micro-finished as well as assembled carefully to close tolerances in order to maintain maximum efficiency for a long time. We always adopt and implement the cutting-edge technology to ensure the optimum performance, durability, finishing, standards, corrosion resistance and longer life of our products.

Owing to competitive prices, the world class quality and standards, long operational life, our oil sealed high vacuum pumps (laboratory Models) becomes the most preferable choice of customers.


Oil Seal Vacuum Pumps – Process

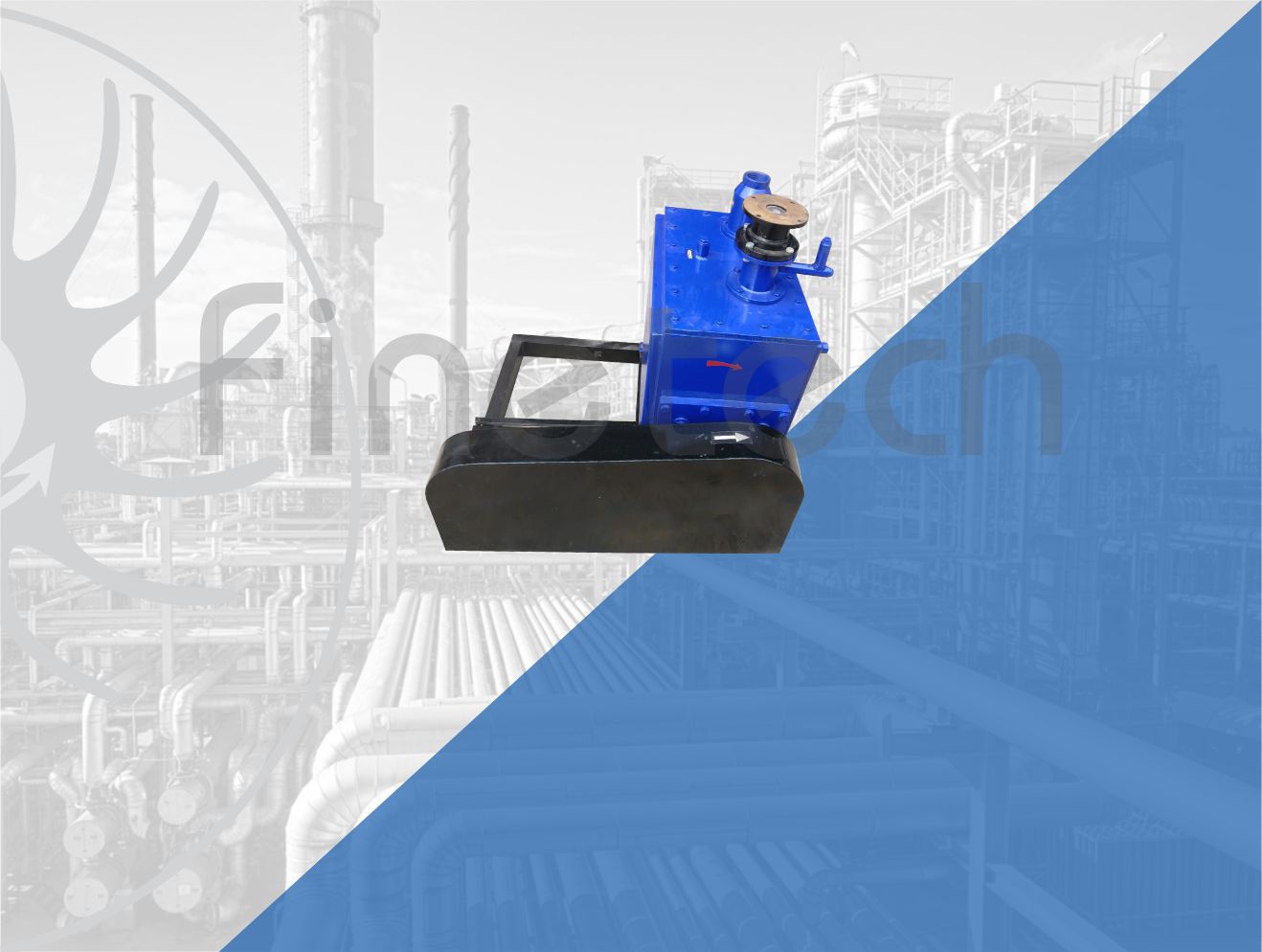

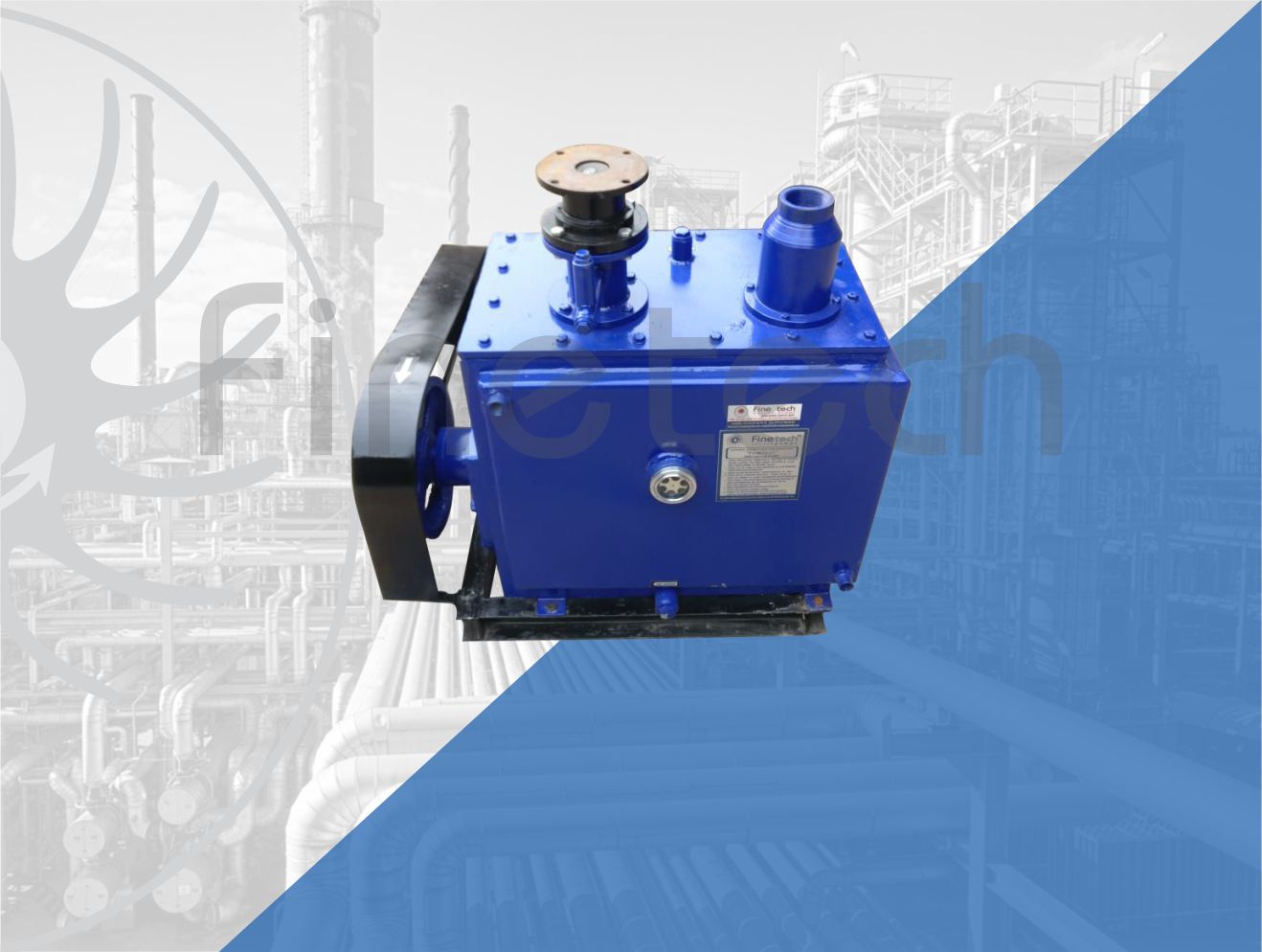

Our oil seal vacuum pumps are oil-immersed, rotary vane type pumps. The rotor, with two spring loaded vanes, is mounted eccentric in the stator body. As the rotor, rotates the vanes sweep the crescent shapes, air space twice in each revolution. There is in-built non-return valve which prevents back flow parts are precisely machined, ground and assembled with close tolerances.

With our precisely designed pumps, maximum vacuum can be achieved in a very short period. Thus, the rise in the temperature of the unit is successfully checked and the wear and tear of its components are also reduced. Hence, our oil seal vacuum pump has emerged as a long lasting, noiseless and trouble-free performer for years.


Technical Specification

Pump Model LPM CFM Ultimate Vacuummm of Hg Drive Motor Reqd . HP Approx.Oil Filling Ltrs.
FTO - 50S 50 1.8 0.05 0.25 2
FTO - 100S 100 3.5 0.05 0.25 2
FTO - 150S 150 5.3 0.05 0.5 4
FTO - 300S 300 10.6 0.05 1 6
FTO - 500S 500 17.6 0.05 1.5 8
FTO - 750S 750 26.5 0.05 2 10
FTO - 1000S 1000 35.5 0.05 3 18
FTO - 1500S 1500 53 0.05 3 20
FTO - 2000S 2000 70.5 0.05 5 25
FTO - 3000S 3000 106 0.05 5 35
FTO - 5000S 5000 177 0.05 7.5 40
FTO - 7500S 7500 265 0.05 10 50
FTO - 10000S 10000 354 0.05 12.5 55
FTO - 12000S 12000 425 0.05 15 65
FTO - 15000S 15000 531 0.05 15 65
FTO - 20000S 20000 708 0.05 25 70

Technical Specification

Pump Model LPM CFM Ultimate Vacuummm of Hg Drive Motor Reqd . HP Approx.Oil Filling Ltrs.
FTO - 50T 50 1.8 0.005 0.25 2
FTO - 100T 100 3.5 0.005 0.5 3
FTO - 150T 150 5.3 0.005 0.5 5
FTO - 300T 300 10.6 0.005 1.5 8
FTO - 500T 500 17.6 0.005 1.5 8
FTO - 750T 750 26.5 0.005 3 10
FTO - 1000T 1000 35.5 0.005 3 18
FTO - 1500T 1500 53 0.005 3 20
FTO - 2000T 2000 70.5 0.005 5 30
FTO - 3000T 3000 106 0.005 7.5 40
FTO - 5000T 5000 106 0.005 7.5 50
FTO - 7500T 7500 106 0.005 10 55
FTO - 10000T 10000 354 0.005 12.5 60
FTO - 12000T 12000 354 0.005 15 65
FTO - 15000T 15000 354 0.005 20 70
FTO - 20000T 20000 708 0.005 25 80
